Product Application of steam distillation equipment for ginger essential oil :
Our essential oil extraction equipment,health products,biological drugs,cosmetics and food .This uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
Main advantage essential oil extraction equipment:
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

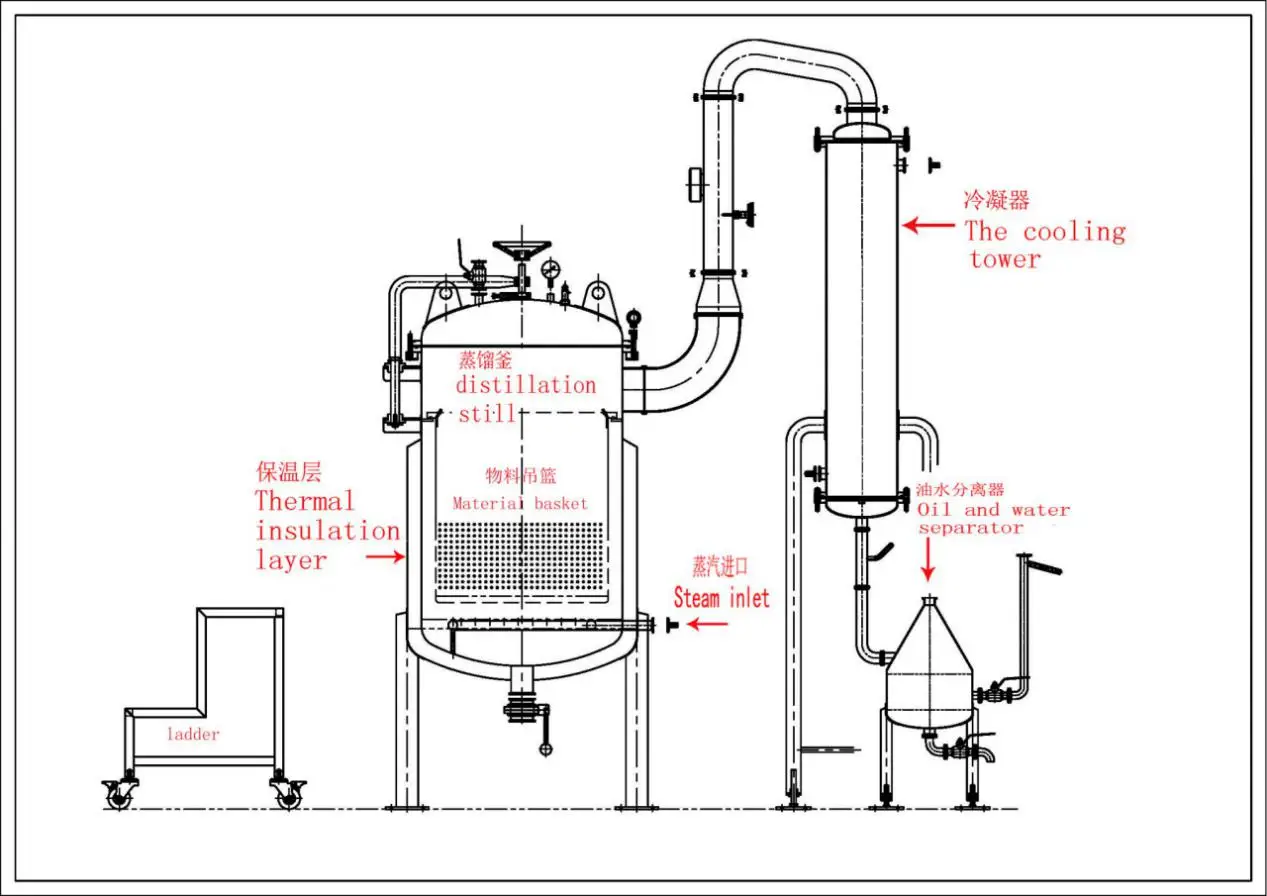

The device consists of distillation kettle, material basket, insulation layer, demister, condensing tower, oil-water separator, (Gas or oil-fired boiler), and other related pipelines composition.
Effective volume: Effective volume 300L, Steam direct heating, Heat exchange area 5m2. Inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃, work temperature≤100℃.Working medium:water; Insulation layer: Material Aluminium silicate, thickness 50mm Drain valve:DN75
Size Φ102×400, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.
Vertical condenser.:Heat transfer area is greater than 2.5m2 Pipeline: designed pressure: normal pressure;working pressure: normal Pressure; design temperature: 100℃, work temperature≤100℃. Working medium:Secondary steam. Length: Φ25×2; Shell: designed pressure: 0.3Mpa,working pressure: normal pressure; design temperature: 80℃,work temperature: 15~30℃. Working medium: cooling water.
essential oil distiller
Gaultheria procumbens leaf
Cinnamomum cassia essential oil distiller
Cinnamomum cassia Cinnamon bark
Achillea millefolium essential oil distiller
Achillea millefolium flower and upper branches
Santalum album essential oil distiller
Santalum album Wood core and root core
Cymbopogon nardus essential oil distiller
Cymbopogon nardus Leaf blade
Matricaria chamomilla essential oil distiller
Matricaria chamomilla flowers
Pimenta dioica essential oil distiller
Pimenta dioica seeds
Anthemis nobilis essential oil distiller
Anthemis nobilis flowers
Angelica archengelica essential oil distiller
Angelica archengelica root
esential oil distiller
Cinnamomum zeylanicum Wood
ore and root core
Angelica archengelica essential oil distiller
Angelica archengelica seeds
Salvia sclarea essential oil distiller
Salvia sclarea Leaf and upper branch
Pimpinella anisum essential oil distiller
Pimpinella anisum seeds
Eugenia caryophylatta essential oil distiller
Eugenia caryophylatta bud
Packaging & Shipping
We will assemble and the test machine before packing.also send English manual brochure.we will provide one engineer to assemble and train workers.

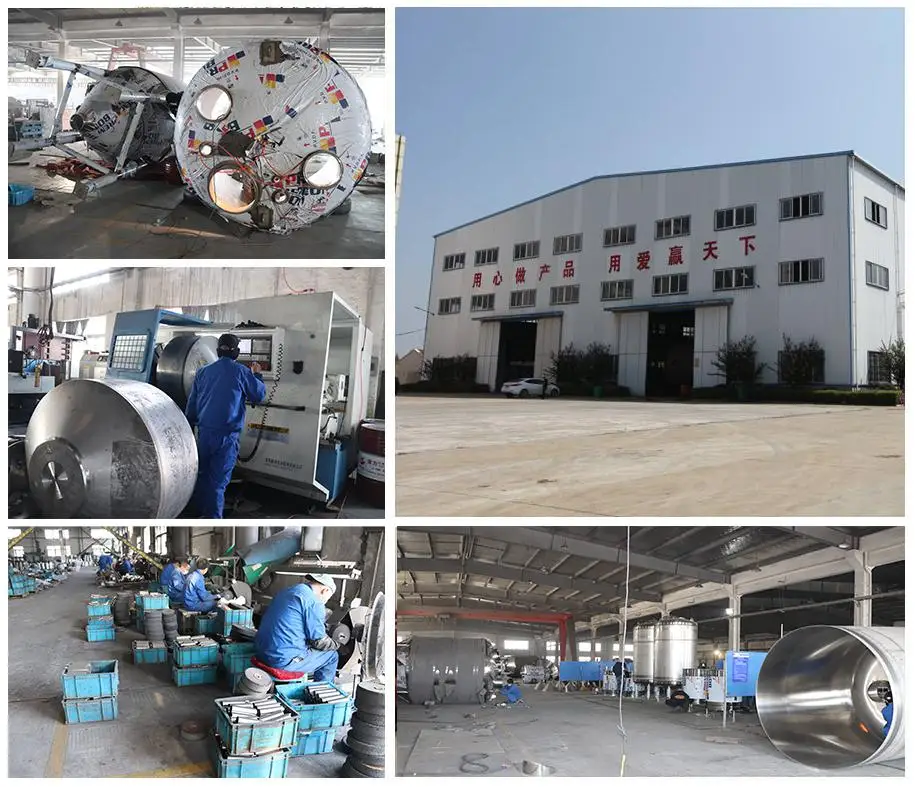

Wuhan HDC Technology Co., Ltd. is a professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc. owing wide international market in more than 130 countries and regions. We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
1.quick response 2.Detailed quotation 3.Professional production and transportation solution After-sales service 1.One year warranty 2.we will provide one engineer to assemble and train workers. 3.7*24 hours technical support by mail/whatsapp/skype/wechat/mobile phone.
Q1: What is the Warranty for the machines?
A1: 1 year for free. Q2: What is the Material A2: Stainless steel. Q3: When can I get the price? A3: Within 24 hours, if urgent, please directly call us. Q4: Whether the machine price can be more discount? A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount. Q5: How to ask quotation? A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send you quotation as soon as we can. Q6: Can we ask the oil plant for different types of oil? A6: Yes, but we recommend no more than 3 different types. Q7: Essential oil plants require how large of a workspace? A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available. Q8: How long will it take to receive my products? A8: As a general rule, it will take one Month for us to produce. Q9: Do you offer oversea installation? A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
Please tell us the following information when sending inquiries. We will recommend suitable machine or provide suggestions upon the following information. Thank you in advance. 1. Raw materail 2. The capacity Tip: Pictures along with the information above will be better.
