Stainless Steel lavender essential oil extraction equipment ginger co2 oil extraction machine and crude oil distillation unit

FOB Reference Price:Get Latest Price
$9,800.00 - $14,500.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
300L
Power(W):
24KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Usage:
Plants,flowers,leaf, pericarp, essential oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
98%-100%
Place of Origin:
Shanghai, China
Brand Name:
HDC
Voltage:
380V/50HZ/Triple phase
Dimension(L*W*H):
depends on capacity
Weight:
580kg
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
Product name:
essential oil distillation equipment
Material:
stainless steel 304
Advantage:
High Efficient
Raw material:
Plants,flowers,leaf, pericarp
Capacity:
60kg/batch
Distillation pot:
300L
Name:
Essential Oil Distillation Equipment
Function:
Make Essential Oil
Supply Ability
Supply Ability:
200 Set/Sets per Month essential oil distillation
Packaging & Delivery
Packaging Details
By Plywood, standard international trade packing.
Stainless Steel lavender essential oil extraction equipment ginger co2 oil extraction machine and crude oil distillation unit
Port
Qingdao, shanghai, wuhan
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Product Application of essential oil extraction equipment:

Our essential oil extraction equipment,health products,biological drugs,cosmetics and food .This uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.

Main advantage essential oil extraction equipment:

(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

Technology Process

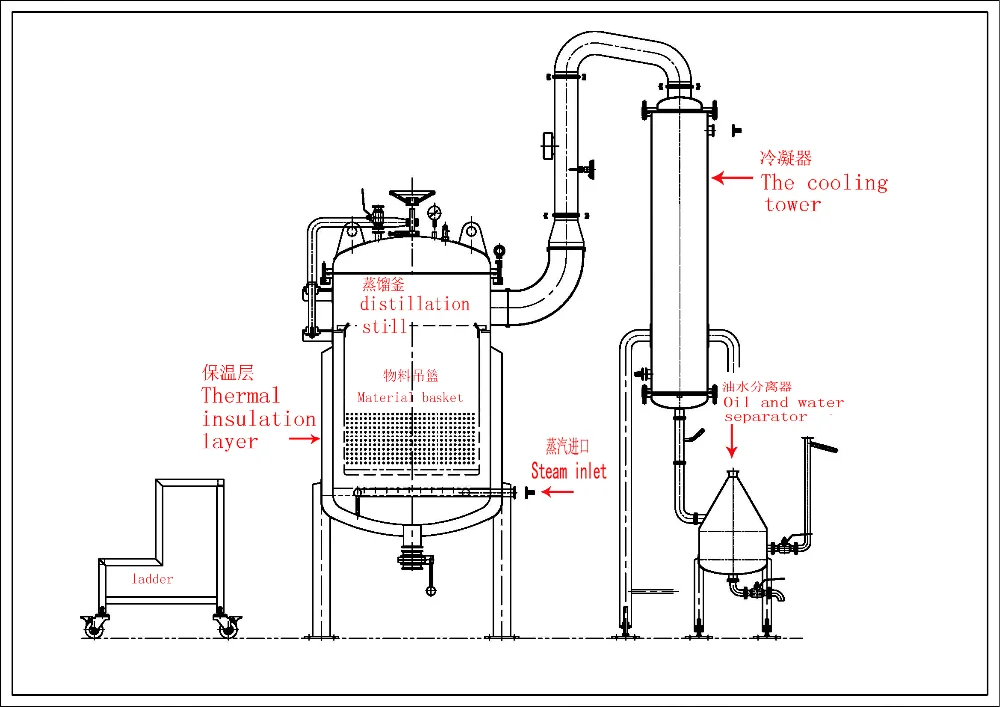

The device consists of distillation kettle, material basket, insulation layer, demister, condensing tower, oil-water separator, (Gas or oil-fired boiler), and other related pipelines composition.

Distillation kettle
Effective volume: Effective volume 300L, Steam direct heating, Heat exchange area 5m2.
Inside: design pressure: 0.09Mpa, working pressure: normal pressure;
design temperature:120℃, work temperature≤100℃.Working medium:water;
Insulation layer: Material Aluminium silicate, thickness 50mm
Drain valve:DN75
Demister
Size Φ102×400, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.
  Condenser
Vertical condenser.:Heat transfer area is greater than 2.5m2
Pipeline: designed pressure: normal pressure;working pressure: normal
Pressure; design temperature: 100℃, work temperature≤100℃.
Working medium:Secondary steam. Length: Φ25×2;
Shell: designed pressure: 0.3Mpa,working pressure: normal pressure;
design temperature: 80℃,work temperature: 15~30℃.
Working medium: cooling water.

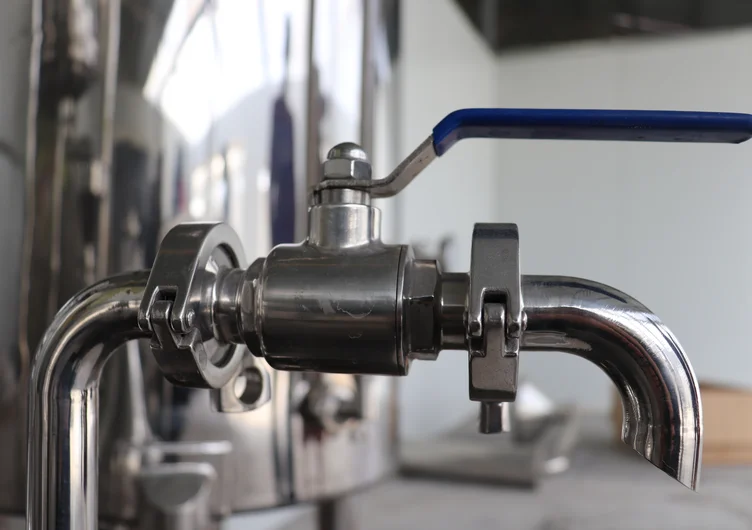

Detailed Images

Essential oil distillation equipment features:

It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.

Essential oil distillation equipment features:

This versatile distiller can be used for water distillation or water steam distillation.
It can be used for either water distillation (where the plant material is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water)

Essential oil distillation equipment features:

Name: Steam distillation
Brand: HDC
Original: China
Power:380V/50HZ/3P, 220V/60HZ/3P

Other detailed

Other related products

Product parameter
Description
Raw material
Description
Raw material
Gaultheria procumbens
essential oil distiller
Gaultheria procumbens leaf
Cinnamomum cassia
essential oil distiller
Cinnamomum cassia
Cinnamon bark
Achillea millefolium
essential oil distiller
Achillea millefolium flower
and upper branches
Santalum album
essential oil distiller
Santalum album
Wood core and root core
Cymbopogon nardus
essential oil distiller
Cymbopogon nardus
Leaf blade
Matricaria chamomilla
essential oil distiller
Matricaria chamomilla
flowers
Pimenta dioica
essential oil distiller
Pimenta dioica seeds
Anthemis nobilis
essential oil distiller
Anthemis nobilis flowers
Angelica archengelica
essential oil distiller
Angelica archengelica root
Cinnamomum zeylanicum
essential oil distiller
Cinnamomum zeylanicum Wood core and root core
Angelica archengelica
essential oil distiller
Angelica archengelica seeds
Salvia sclarea
essential oil distiller
Salvia sclarea Leaf

and upper branch
Pimpinella anisum
essential oil distiller
Pimpinella anisum seeds
Eugenia caryophylatta
essential oil distiller
Eugenia caryophylatta bud

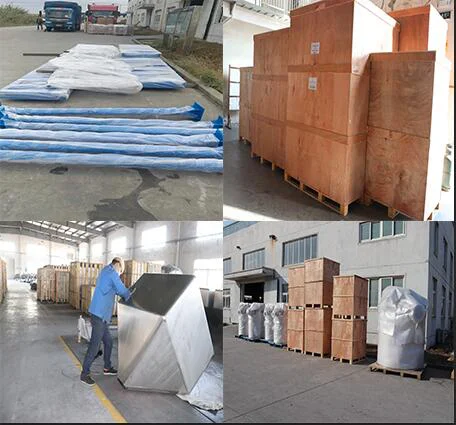

Packing & Delivery
Packing
Size
To be determined
Weight
Packaging Details
The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request.
Delivery
Tool
Ship, express or Air
Packing
In containers
  Shipping Details
The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need.
You can contact your own shipping agent or ask us to arrange shipping for you.
Installation

We will assemble and the test machine before packing.also send English manual brochure.we will provide one engineer to assemble and train workers.

Our Company

Wuhan HDC  is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. we owning wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.

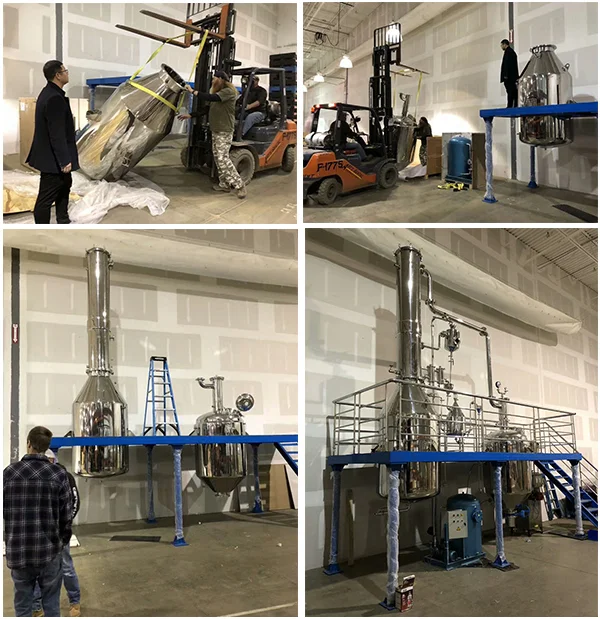

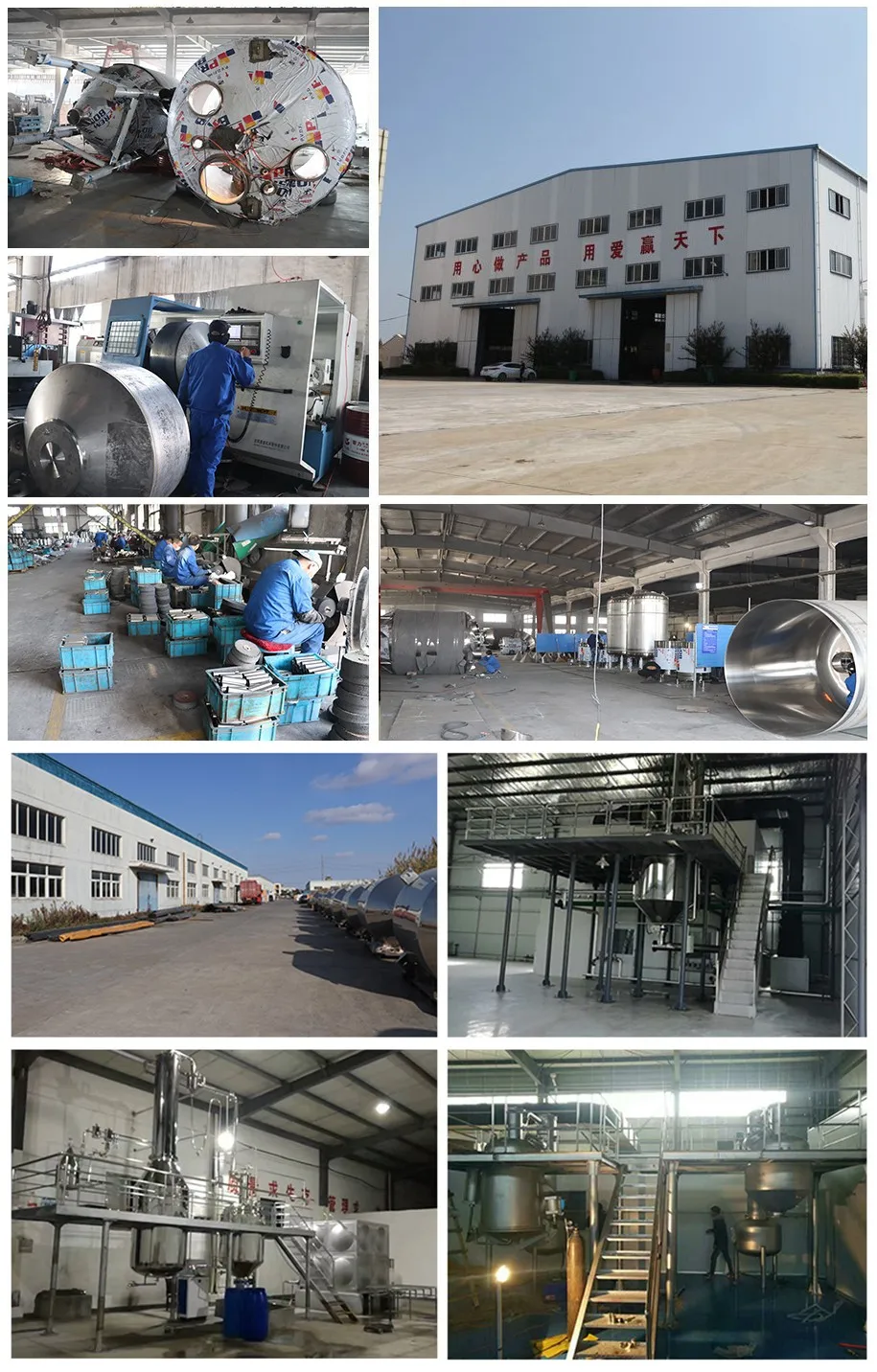

The following pictures show our factory and customers

Our Service:

Pre-sales Service
1.quick response
2.Detailed quotation
3.Professional production and transportation solution

After-sales Service
1.One year warranty
2.we will provide one engineer to assemble and train workers.
3.7*24 hours technical support by mail/whatsapp/skype/wechat/mobile phone

FAQ

Q1: What is the Warranty for the machines?
A1: 1 year for free.

Q2: What is the Material
A2: Stainless steel.

Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.

Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.

Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send you quotation as soon as we can.

Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.

Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.

Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.

Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely
.
